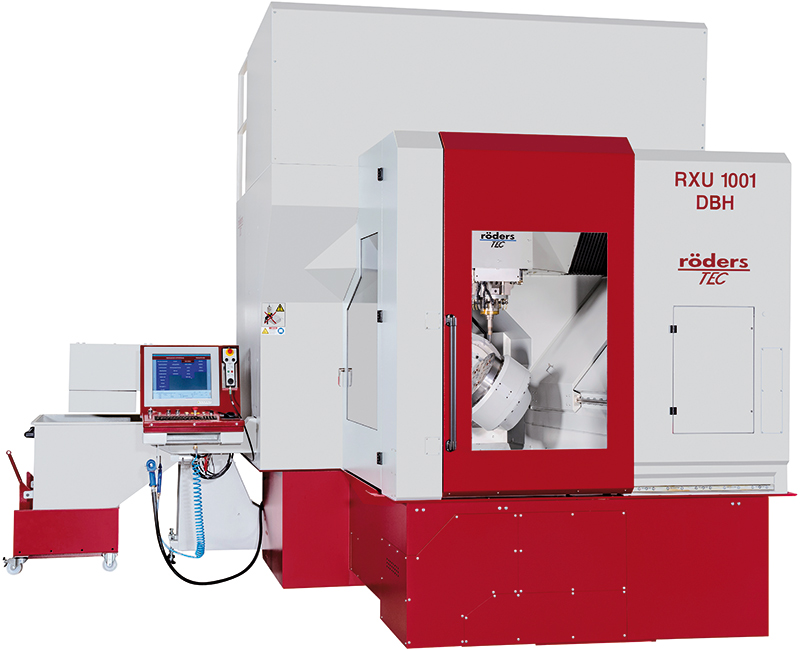

RXU1001DBH

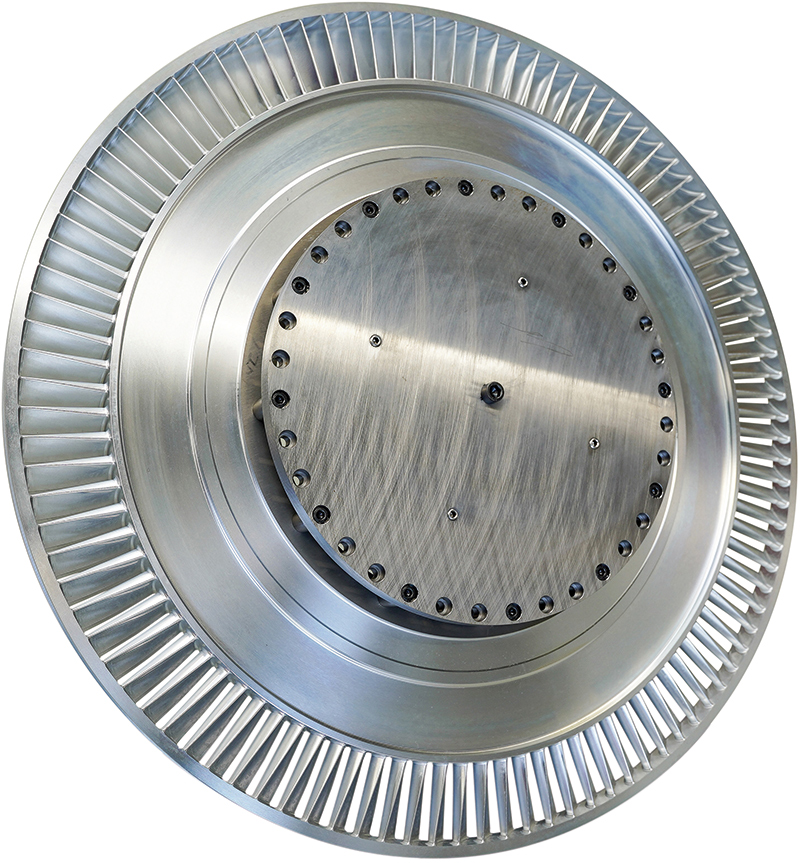

- RXU1001DSH with special C‑axis for machining BLING wheels on both sides in a single set-up
- The wear-free direct-drive technology consistently ensures high quality long-term
- Highly rigid, but still dynamic design
- Largest spindle with HSK A63 interface, 102 Nm (S1)

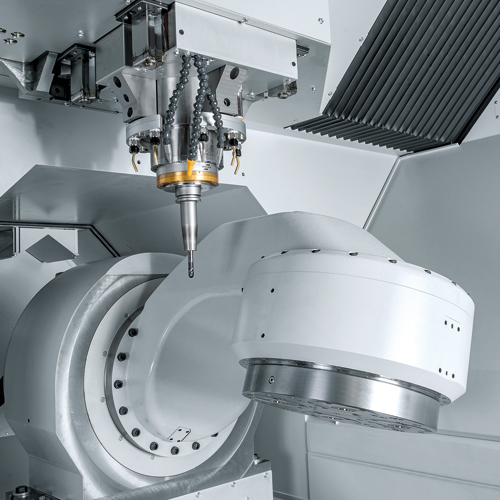

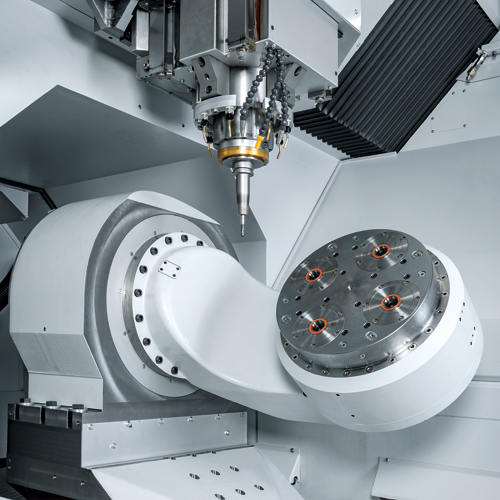

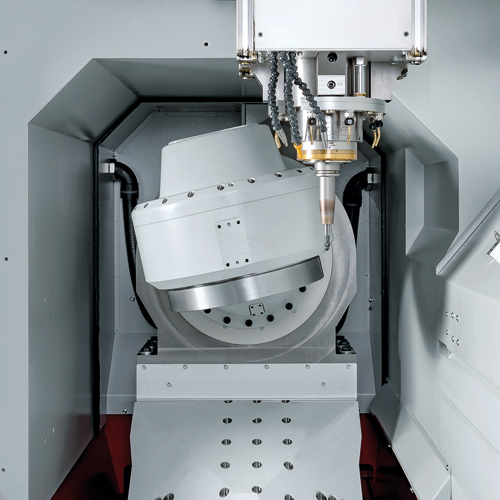

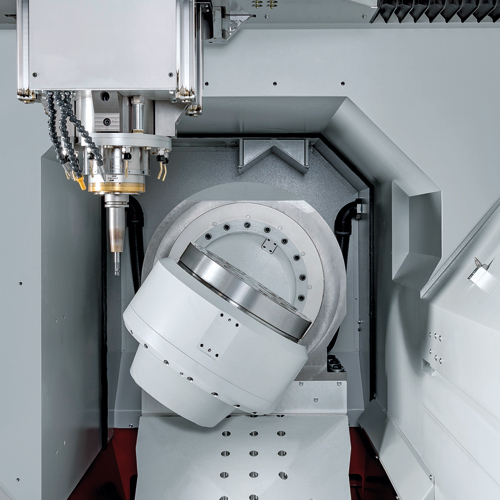

Thanks to the big swivel range of the A‑axis, from +45 degrees to ‑195 degrees, BLING wheels can be machined from both sides in a single set-up to produce excellent surface finishes without any steps. A second support for the C‑axis has deliberately been omitted to allow access to pockets in any position of the axes. The A‑axis has been reinforced accordingly.
| Technical data | RXU1001DBH |
|---|---|
| Machining range | 800 mm x 855 mm x 500 mm |
| Swivelling range | 45 / — 195 degrees (others on request) |
| Rotation range | Almost unlimited |
| Table size | 355 mm round with integrated 4‑fold quick clamping system, others on request |
| Workpiece weight | max. 300 kg |
| Feed | 0–60,000 mm/min |
| Milling spindle (standard) | 36.000 rpm, 15 kW, HSK E50, max. tool diameter 20 mm, others on request |
| Tool changer | 24, optional 40 or more places (chain changer – can be loaded during machining), integrated measuring laser |
| Chip disposal | With 2 screws into chip box behind the machine or with additional chip conveyor |
| Machine weight | ~21.0 t |
| Required space | W 4120 mm x L 4910 mm x H 3600 mm |
